Every construction project starts with a materials list. And on that list, TMT bars are almost always the biggest line item — not just in cost, but in the number of decisions attached to them. When planning, understanding TMT Bar Weight becomes essential. How many bars do you need? What size? How much will the total weight come out to?
Most people on site either guess or rely entirely on the contractor’s estimate. Both approaches are risky. Underestimating means a mid-project scramble for supply. Overestimating means money sitting on-site as unused steel, rusting away in the rain.
Getting the weight calculation right from the beginning fixes both problems. This guide walks you through the standard TMT bar weight chart, the formula to calculate it yourself, and a size-wise breakdown covering everything from 8mm to 25mm — so you can plan accurately before the first bag of cement is even opened.

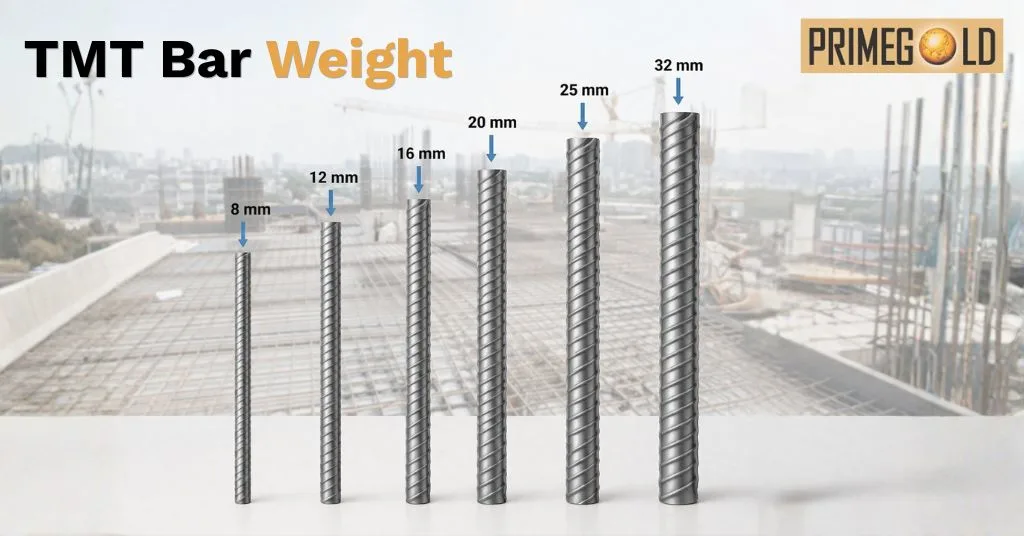

TMT Bar Weight Chart (Quick Reference)
This table covers the standard weights per metre and per piece (12-metre rod, which is the industry standard length) for each common TMT bar size.
| Diameter (mm) | Weight per Metre (kg/m) | Weight per 12m Rod (kg) |
| 8mm | 0.395 kg | 4.74 kg |
| 10mm | 0.617 kg | 7.40 kg |
| 12mm | 0.888 kg | 10.66 kg |
| 16mm | 1.578 kg | 18.94 kg |
| 20mm | 2.469 kg | 29.63 kg |
| 25mm | 3.858 kg | 46.30 kg |
| 32mm | 6.313 kg | 75.76 kg |
Standard values as per IS 1786. Minor variation may occur between manufacturers.
TMT Bar Weight Calculation Formula
You don’t need a calculator for this — just one formula that works for any diameter.
Formula: Weight (kg/m) = D² ÷ 162
Where D is the diameter of the bar in millimetres.
How it works:
- For a 10mm TMT bar: 10 × 10 = 100 ÷ 162 = 0.617 kg/m
- For a 16mm TMT bar: 16 × 16 = 256 ÷ 162 = 1.580 kg/m
- For a 20mm TMT bar: 20 × 20 = 400 ÷ 162 = 2.469 kg/m
To get the total weight for a full 12-metre rod, just multiply the per-metre figure by 12. To get the weight for an entire bundle, multiply by the number of rods in that bundle.
This formula holds true across manufacturers — BIS-certified TMT bars are made to IS 1786 standards, which means the theoretical weight per metre is consistent regardless of which brand you buy.
Size-wise TMT Bar Weight — Detailed Breakdown
8mm TMT Bar
Weight: 0.395 kg/m | 4.74 kg per 12m rod
The lightest standard size on the market. Eight-millimetre bars are primarily used for secondary reinforcement — stirrups in beams, column ties, and light slab mesh work. They’re not structural in the primary sense, but they hold the structure together at the joints, which makes their correct placement just as important as the heavier bars around them.
10mm TMT Bar
Weight: 0.617 kg/m | 7.40 kg per 12m rod
The 10mm TMT bar is a versatile mid-light size that appears in residential slab reinforcement, lintels, small beams, and staircase construction. It handles moderate load distribution well and is one of the most commonly purchased sizes for individual house construction projects.
12mm TMT Bar
Weight: 0.888 kg/m | 10.66 kg per 12m rod
Twelve millimetre bars are the workhorse of residential construction. Beams, columns in low-rise buildings, slabs, and foundation grids — this size covers a wide range of structural applications without the weight and cost of the heavier options. If you’re building a standard two or three-storey home, 12mm will likely form the largest portion of your TMT requirement.
16mm TMT Bar
Weight: 1.578 kg/m | 18.94 kg per 12m rod
Once you move into multi-storey construction, 16mm becomes a primary structural bar. Columns carrying significant vertical load, heavy beams, retaining walls, and foundation raft slabs — this is the size that starts appearing in structural engineer drawings for anything beyond a simple residential build.
20mm TMT Bar
Weight: 2.469 kg/m | 29.63 kg per 12m rod
The 20mm bar is standard territory for commercial construction and serious civil infrastructure. Large-span beams, high-load columns, bridge decks, industrial floors — applications where the structural demand is high and a lighter bar simply won’t meet the specification.
25mm TMT Bar
Weight: 3.858 kg/m | 46.30 kg per 12m rod
Heavy infrastructure. Flyovers, underpasses, large bridge structures, dam construction, industrial foundations — 25mm bars are specified when loads are genuinely large and the engineer needs maximum tensile strength from the reinforcement. At nearly 46 kg per 12-metre rod, these are not bars you want to be misestimating on your material order.
TMT Bar Bundle Weight Chart
Bars are sold and transported in bundles. Knowing the bundle weight helps at two points — when placing your order and when receiving delivery, so you can verify the weight on-site against what was invoiced.
| Diameter (mm) | Rods per Bundle | Approximate Bundle Weight (kg) |
| 8mm | 10 rods | ~47 kg |
| 10mm | 7 rods | ~52 kg |
| 12mm | 5 rods | ~53 kg |
| 16mm | 3 rods | ~57 kg |
| 20mm | 2 rods | ~59 kg |
| 25mm | 1 rod | ~4 6 kg |
Bundle sizes may vary slightly by supplier. Always verify with your dealer.
Common Uses of Different TMT Bar Sizes
Knowing the weight is one thing — knowing which size belongs where is what actually drives accurate estimation.
8mm: Stirrups, column ties, light slab mesh, secondary reinforcement throughout the structure.
10mm: Residential slab reinforcement, lintels, staircase work, smaller beams in low-rise construction.
12mm: Primary structural use in residential buildings — beams, columns, slabs, and footings in two to four-storey construction.
16mm: Multi-storey columns, heavy beams, retaining walls, raft foundations, and any structural element carrying significant vertical or lateral load.
20mm: Commercial and industrial construction — large-span beams, high-load columns, industrial floor slabs, infrastructure projects.
25mm: Large civil infrastructure — flyovers, bridge decks, dam reinforcement, heavy industrial foundations.
The sizing decision ultimately comes from your structural engineer’s drawing. But understanding what each size is actually doing in the structure helps you cross-check estimates and ask the right questions when something doesn’t look right on the materials list.
Tips for Accurate Material Estimation
Always start from the structural drawing. Bar diameters, spacing, and lengths should all be specified by the engineer. Estimating without a drawing produces guesswork, not a materials list.
Add a wastage margin of 5–10%. Cutting, overlapping, and on-site adjustments consume more material than the theoretical calculation suggests. Factor this in before placing the order.
Verify weight on delivery. Use the bundle weight chart to cross-check what’s been delivered against what was invoiced. Weight-based billing is standard, so verifying at receipt protects you from short supply.
Use BIS-certified bars only. IS 1786 certification means the bar has been tested for tensile strength, elongation, and dimensional accuracy. Non-certified bars may carry incorrect markings and won’t meet the theoretical weight values in this guide.
Match the grade to the application. Fe 500 and Fe 500D are the most commonly specified grades for general construction. Fe 550D adds higher ductility — the right call for seismic zones and high-rise structural work.
Conclusion
TMT bar weight isn’t a complicated subject — but getting it right before materials are ordered saves real money and prevents the kind of mid-project delays that push timelines by weeks.
The formula is straightforward: D² ÷ 162 gives you kilograms per metre for any bar size. Multiply by 12 for a full rod, multiply again by the number of rods you need, and your estimate is accurate enough to order against. What matters equally is buying from a manufacturer whose bars actually meet the IS 1786 specification — so the weight you calculate on paper matches the weight and strength you get on site.
Primegold Group has been manufacturing IS-certified TMT bars since 1984, using primary steel and a Thermex cooling process that delivers the tensile strength and earthquake resistance that India’s construction demands.
Visit primegoldgroup.com to explore the full TMT range or find a dealer near your project.
How do you calculate the weight of a TMT bar? The weight of a TMT bar is calculated using a simple formula: Weight (kg/m) = D² ÷ 162, where D is the diameter in millimetres. This formula works for all standard sizes and helps estimate material requirements accurately before construction begins.
What is the standard length of a TMT bar in India? The standard length of a TMT bar in India is 12 metres. While custom lengths may be available in some cases, most construction projects use 12m rods for consistency in design and calculation.
Why is it important to know TMT bar weight before purchasing? Knowing the correct weight helps avoid over-ordering or under-ordering. It ensures accurate budgeting, prevents material wastage, and helps verify that the supplier has delivered the correct quantity on-site
Does TMT bar weight vary between manufacturers? The theoretical weight remains the same for all BIS-certified bars as per IS 1786 standards. However, slight variations may occur due to manufacturing tolerances. Always check for BIS certification to ensure quality and accuracy.
Which TMT bar size is most commonly used in house construction? For residential construction, 10mm and 12mm TMT bars are most commonly used for slabs and beams, while 16mm bars are used for columns and heavier structural elements depending on the design.
